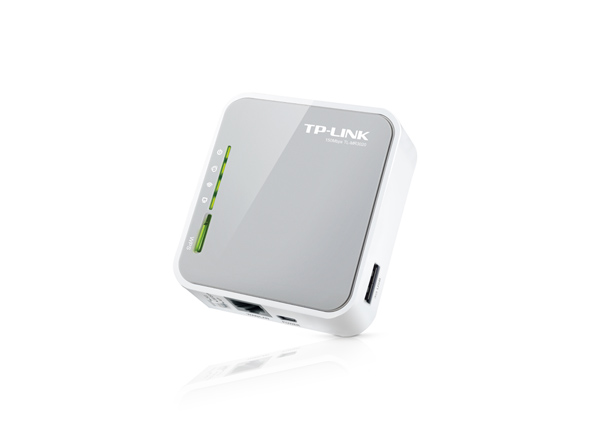

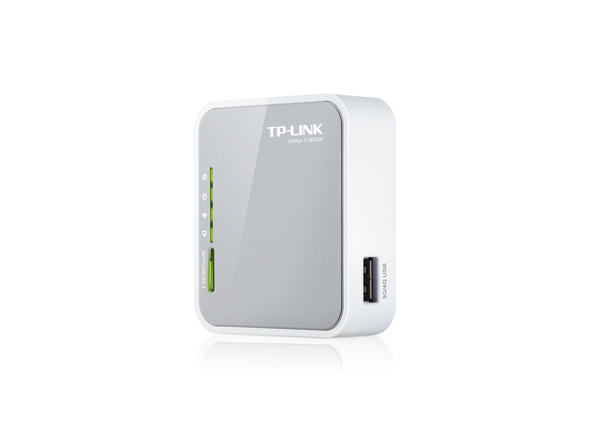

TL-MR3020-01
  • TL-MR3020

    • Share a 3G/4G* mobile connection, compatible with 120+ LTE/HSPA+/HSPA/UMTS/EVDO 3G/4G USB modems, tested in the field
    • Travel-size Design, small and light enough to take on the road, enables users to share a 3G/4G* mobile connection wherever 3G/4G* coverage is available
    • Three modes available for different situations: 3G/4G* Router, WISP Client Router and Travel Router Mode (AP Mode)
    • With 3G/4G* and WAN failover back-up strategy, TL-MR3020 can provide a sustained internet connection.
    Category: .

    Product Description

    Portable 3G/4G Wireless N Router

    • Share a 3G/4G* mobile connection, compatible with 120+ LTE/HSPA+/HSPA/UMTS/EVDO 3G/4G USB modems, tested in the field
    • Travel-size Design, small and light enough to take on the road, enables users to share a 3G/4G* mobile connection wherever 3G/4G* coverage is available
    • Wireless speed is up to 150Mbps
    • Three modes available for different situations: 3G/4G* Router, WISP Client Router and Travel Router Mode (AP Mode)
    • With 3G/4G* and WAN failover back-up strategy, TL-MR3020 can provide a sustained internet connection.

    *If your existing device does not support 4G sharing, please upgrade it to the latest firmware manually.

    Click here to find your firmware version.

    For More Info Please Visit www.tp-link.com

    HARDWARE FEATURES

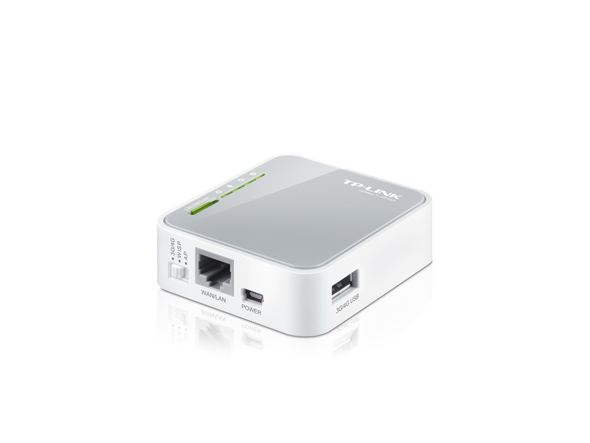

    Interface 1 10/100Mbps WAN/LAN Port, USB 2.0 Port for 3G/4G modem, a mini USB Port for power supply.
    Button Reset Button, Mode Switch
    External Power Supply 5VDC/1.0A
    Dimensions ( W x D x H ) 2.9 x 2.6 x 0.9 in. (74 x 67 x22 mm)
    Antenna Type Internal Antenna
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    Frequency 2.4-2.4835GHz
    Transmit Power <20dBm
    Wireless Modes 3G Router, Travel Router (AP), WISP Client Router
    Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering
    SOFTWARE FEATURES
    Security Firewall, MAC filtering, Denial of Service (DoS)
    DHCP Server, DHCP Client List, Address Reservation
    Port Forwarding Virtual Server, Port Triggering, DMZ, UPnP
    Access Control Parental Control, Host List, Access Schedule, Rule Management
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents TL-MR3020 router, QIG, Power Adapter, USB Cable, Resource CD, Ethernet Cable
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
    Environment Operating temperature:-10℃~60℃
    Storage Temperature: -40℃~80℃
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
