TD-W8968(UN)3.0-01
  • TD-W8968

    • All-in-One Device: ADSL2+ Modem, NAT Router, Switch and Wireless N Access Point
    • 2.4GHz, IEEE802.11b/g/n, up to 300Mbps data transfer rates
    • USB Port for Storage Sharing, Printer Sharing, 3G Modem Sharing, FTP Server and Media Server
    • Supports the latest Internet Protocol IPv6 to future-proof your network
    Category: .

    Product Description

    300Mbps Wireless N USB ADSL2+ Modem Router

    • All-in-One Device: ADSL2+ Modem, NAT Router, Switch and Wireless N Access Point
    • 2.4GHz, IEEE802.11b/g/n, up to 300Mbps data transfer rates
    • USB Port for Storage Sharing, Printer Sharing, 3G Modem Sharing, FTP Server and Media Server
    • Supports the latest Internet Protocol IPv6 to future-proof your network
    • Ethernet WAN (EWAN) offers another broadband connectivity option for connecting to Cable, VDSL or Fiber modems
    • Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network

    For More Info Please Visit www.tp-link.com

    HARDWARE FEATURES

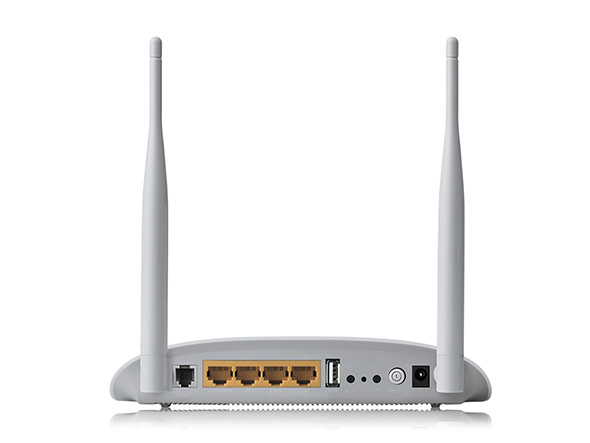

    Interface 4 10/100Mbps RJ45 Ports
    1 RJ11 Port
    1 USB 2.0 Port
    Button 1 Power On/Off Button
    1 WPS Button
    1 Wi-Fi On/Off Button
    1 RESET Button
    Dimensions (W X D X H) 7.7*5.1*1.4 in. (195×130×36mm)
    External Power Supply 12VDC/1A
    IEEE Standards IEEE 802.3, 802.3u
    ADSL Standards Full-rate ANSI T1.413 Issue 2
    ITU-T G.992.1(G.DMT)
    ITU-T G.992.2(G.Lite)
    ITU-T G.994.1 (G.hs)
    ITU-T G.995.1
    ADSL2 Standards ITU-T G.992.3 (G.dmt.bis),
    ITU-T G.992.4 (G.lite.bis)
    ADSL2+ Standards ITU-T G.992.5
    Antenna Type Omni directional, Fixed
    Antenna Gain 2 x 5dBi
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11b, 802.11g, 802.11n
    Frequency 2.400-2.4835GHz
    Transmit Power <20dBm(EIRP)
    Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
    Wireless MAC Filtering
    SOFTWARE FEATURES
    Quality of Service Bandwidth Control
    Security NAT Firewall,
    SPI Firewall,
    MAC / IP / Packet / URL Filtering
    Management Web Based Configuration(HTTP),
    Remote management,
    Telnet management,
    Command Line Interface,
    SSL for TR-069,
    SNMP v1/2c,
    SNMP over EOC,
    Web Based Firmware Upgrade,
    CWMP(TR-069),
    Diagnostic Tools
    Port Forwarding Virtual server, DMZ, ACL(Access Control List)
    VPN Pass-Through PPTP, L2TP, IPSec Pass-through
    ATM/PPP Protocols ATM Forum UNI3.1/4.0
    PPP over ATM (RFC 2364)
    PPP over Ethernet (RFC2516)
    IPoA (RFC1577/2225)
    PVC – Up to 8 PVCs
    Advanced Features Ethernet WAN (EWAN)
    Guest Network, Wireless Schedule
    Parent Control
    Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
    Dynamic Host Configuration Protocol (DHCP), DHCP relay;
    Network Address Translation (NAT);
    PVC/Ethernet Port Grouping
    Static Routing, RIP v1/v2 (optional);
    DNS Relay, DDNS,
    IGMP snooping V1/2
    IGMP Multicast,
    UPnP
    USB Sharing Storage Sharing
    FTP Server
    Media Server
    Print Server
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents TD-W8968
    External Splitter
    RJ-11 Telephone Cable
    RJ-45 Ethernet Cable
    Quick Installation Guide
    Resource CD
    Power Adapter
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
