TD-W8961ND-3.0-01
  • TD-W8961ND

    • ADSL 2/2+ Modem, Wireless N Access Point and 4-Port Router, in a single device
    • Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even HD video streaming
    • Easy Setup Assistant with multi-language support provides quick & hassle-free installation
    Category: .

    Product Description

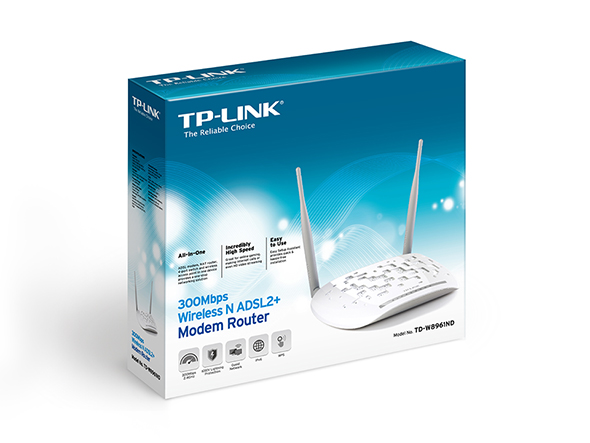

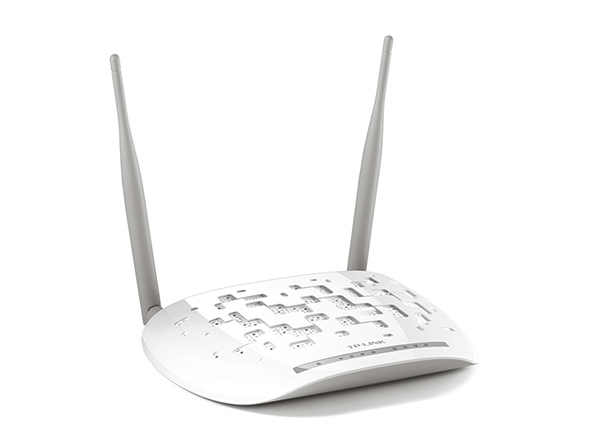

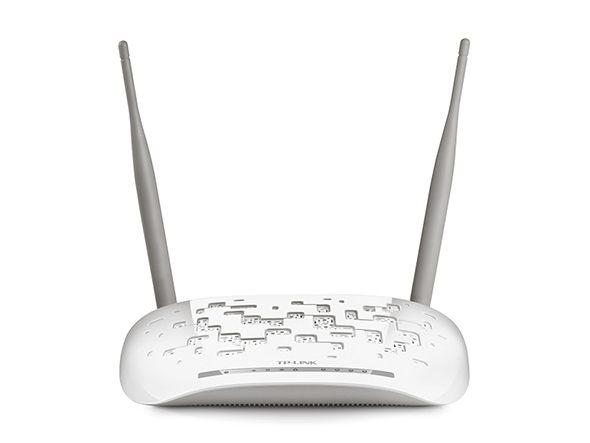

    300Mbps Wireless N ADSL2+ Modem Router

    • ADSL 2/2+ Modem, Wireless N Access Point and 4-Port Router, in a single device
    • Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even HD video streaming
    • Easy Setup Assistant with multi-language support provides quick & hassle-free installation
    • Easy one-touch wireless security encryption with the”WPS” button and Easy Wi-Fi On/Off button

    For More Info Please Visit www.tp-link.com



    HARDWARE FEATURES

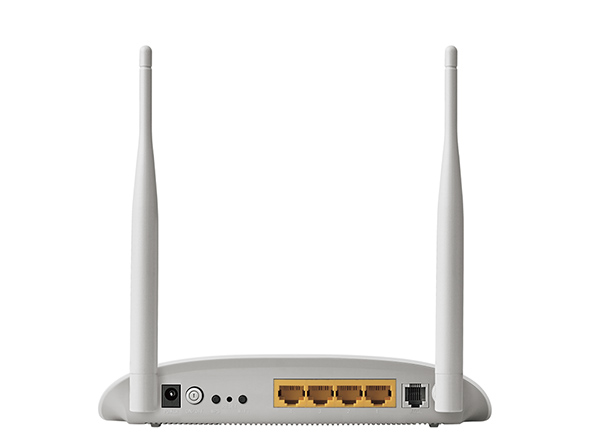

    Interface 4 10/100Mbps RJ45 Ports
    1 RJ11 Port
    Button 1 Power On/Off Switch
    1 WPS Button
    1 Wi-Fi On/Off Button
    External Power Supply 9VDC/0.85A
    IEEE Standards IEEE 802.3, 802.3u
    ADSL Standards Full-rate ANSI T1.413 Issue 2,
    ITU-T G.992.1(G.DMT),
    ITU-T G.992.2(G.Lite)
    ITU-T G.994.1 (G.hs),
    ITU-T G.995.1
    ADSL2 Standards ITU-T G.992.3 (G.dmt.bis),
    ITU-T G.992.4 (G.lite.bis)
    ADSL2+ Standards ITU-T G.992.5
    Dimensions ( W x D x H ) 7.7*5.1*1.4 inch ( 195*130*35 mm )
    Antenna Type Omni directional, Detachable, Reverse SMA
    Antenna Gain 2x5dBi
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11n, 802.11g, 802.11b
    Frequency 2.400-2.4835GHz
    Transmit Power <20dBm(EIRP)
    Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
    Wireless MAC Filtering
    SOFTWARE FEATURES
    Quality of Service QoS Remarking based on IPP/ToS, DSCP and 802.1p
    Security NAT Firewall,
    SPI Firewall,
    MAC / IP / Packet / Application / URL Filtering,
    Denial of Service(DoS),
    SYN Flooding,
    Ping of Death
    Management Web Based Configuration(HTTP),
    Remote management,
    Telnet management,
    Command Line Interface,
    SSL for TR-069,
    SNMP v1/2c,
    SNMP over EOC,
    Web Based Firmware Upgrade,
    CWMP(TR-069),
    Diagnostic Tools
    Port Forwarding Virtual server, DMZ, ACL(Access Control List)
    VPN Pass-Through PPTP, L2TP, IPSec Pass-through
    ATM/PPP Protocols ATM Forum UNI3.1/4.0,
    PPP over ATM (RFC 2364),
    PPP over Ethernet (RFC2516),
    IPoA (RFC1577/2225),
    PVC – Up to 8 PVCs,
    Advanced Features Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
    Dynamic Host Configuration Protocol (DHCP), DHCP relay;
    Network Address Translation (NAT);
    PVC/Ethernet Port Mapping
    VLAN, 802.1P,
    Static Routing, RIP v1/v2 (optional);
    DNS Relay, DDNS,
    IGMP snooping V1/2
    IGMP Multicast,
    UPnP
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents TD-W8961ND
    External Splitter
    RJ-11 Telephone Cable
    RJ-45 Ethernet Cable
    Quick Installation Guide
    Resource CD
    Power Adapter
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
