Home TP-Link Gigabit Switchs TP-Link TL-SG1008
TL-SG1008-01
  • TP-Link TL-SG1008

    • 8 10/100/1000Mbps RJ45 ports
    • Innovative energy-efficient technology saves power up to 75%
    • Supports MAC address self-learning and auto MDI/MDIX
    • Standard 13-inch rackmount steel case
    Category: .

    Product Description

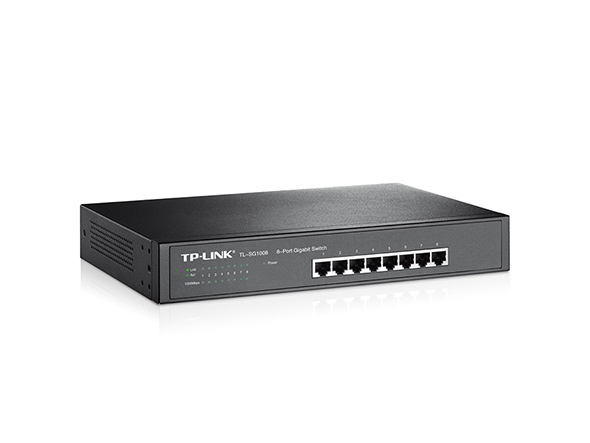

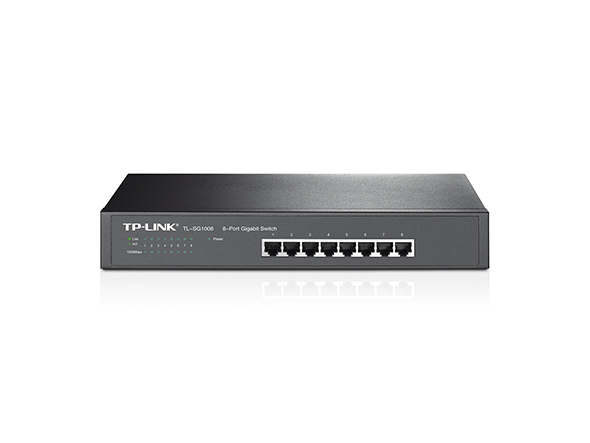

    8-Port Gigabit Desktop/Rackmount Switch TL-SG1008

    • 8 10/100/1000Mbps RJ45 ports
    • Innovative energy-efficient technology saves power up to 75%
    • Supports MAC address self-learning and auto MDI/MDIX
    • Standard 13-inch rackmount steel case

    For More Info Please Visit www.tp-link.com

    Features

    • Innovative energy-efficient technology saves power up to 75%
    • 100% Data filtering rate eliminates all error packets
    • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
    • Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
    • 16Gbps Switching Capacity
    • Auto-MDI/MDIX eliminates the need for crossover cables
    • Supports MAC address auto-learning and auto-aging
    • Support the port N-Way Auto-Negotiation, Store and Forward
    • Compact size design for desktops, rackmountable
    • Plug and Play design simplifies installation
    • Fanless design to make sure it works quietly
    HARDWARE FEATURES
    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
    Interface 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
    Fan Quantity Fanless
    Power Supply 100-240VAC, 50/60Hz
    Power Consumption Maximum: 3.32W (220V/50Hz)
    Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
    PERFORMANCE
    Switching Capacity 16Gbps
    Packet Forwarding Rate 11.9Mpps
    MAC Address Table 8K
    Buffer Memory 2Mb
    Jumbo Frame 16KB
    Green Technology Innovative energy-efficient technology saves power up to 75%
    Transfer Method Store-and-Forward
    OTHERS
    Certification FCC, CE, RoHS
    Package Contents 8-Port Gigabit Desktop Switch
    Power Cord
    Installation Guide
    Rackmount kit
    Rubber Feet
    System Requirements Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
    Storage Temperature: -40℃~70℃ (-40℉~158℉);
    Operating Humidity: 10%~90% non-condensing;
    Storage Humidity: 5%~90% non-condensing
