TP-Link TL-SF1008P

  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • Requires no configuration and installation

Description

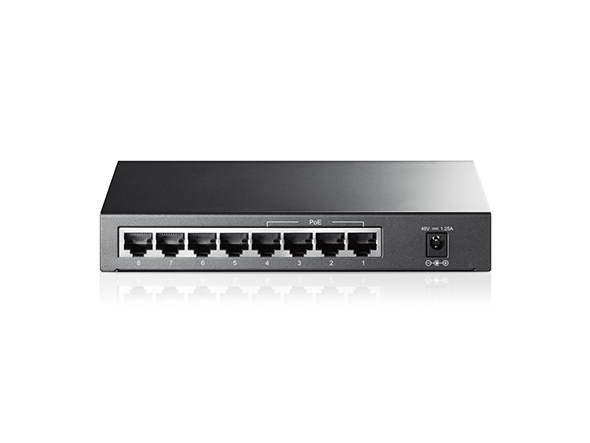

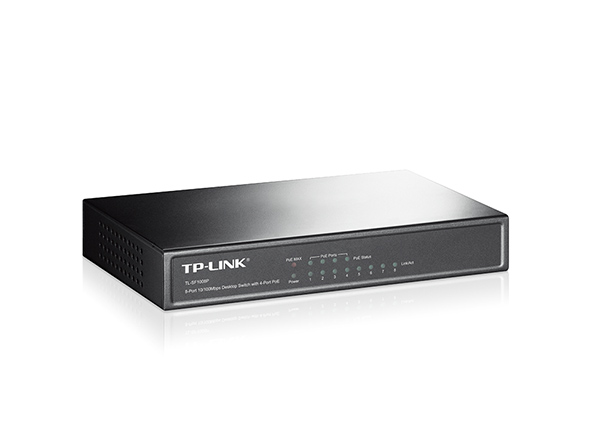

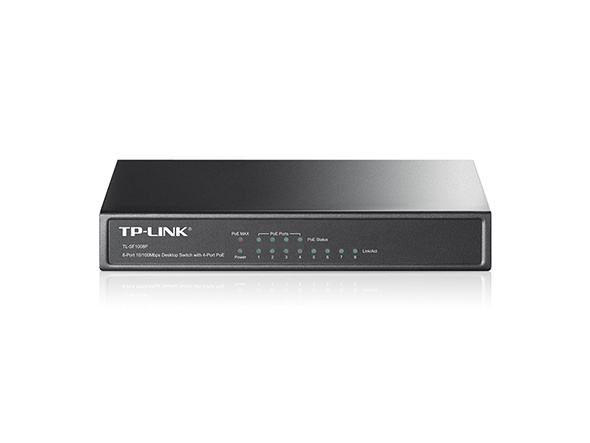

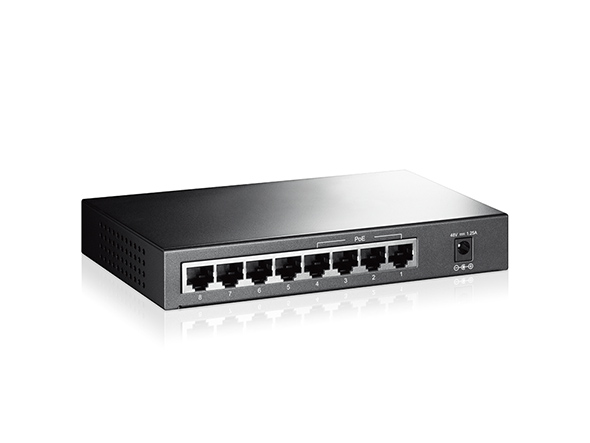

8-Port 10/100Mbps Desktop Switch with 4-Port PoE TL-SF1008P

  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • Requires no configuration and installation

For More Info Please Visit www.tp-link.com

Features

  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 57W for all PoE ports
  • Supports PoE IEEE 802.3af compliant PDs
  • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • 2K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity
  • External power adapter supply
HARDWARE FEATURES
Interface 8 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Dimensions (W X D X H) 6.7*3.9*1.1 in. (171*98*27 mm)
Power Consumption Maximum (PoE on): 60.2W (220V/50Hz)
Maximum (PoE off): 3.2W (220V/50Hz)
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 57W
Backbound Bandwidth 1.6Gbps
Mac Address Table 2K
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SF1008P, Power Adapter, User Guide
Consumption 2.3 watts (max. no PD connected)
59.3 watts (max. with 57w PD connected)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
