TL-MR3040-02
  • TL-MR3040

    • Compatible with LTE/ HSPA+/UMTS/EVDO 3G/4G USB modems
    • Features a 2000mAh battery for maximum usage time
    •  Three operation modes available for different situations: 3G/4G Router, Travel Router (AP), WISP Client Router
    • 150Mbps wireless speeds for rapid sharing and increased signal range
    Category: .

    Product Description

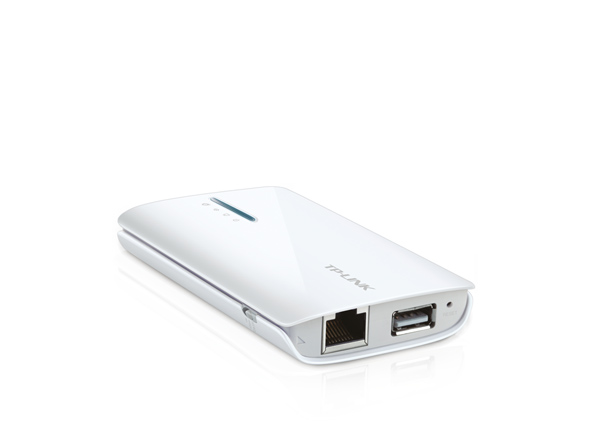

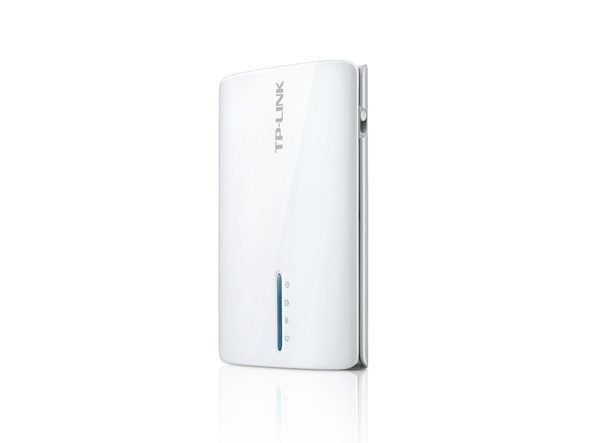

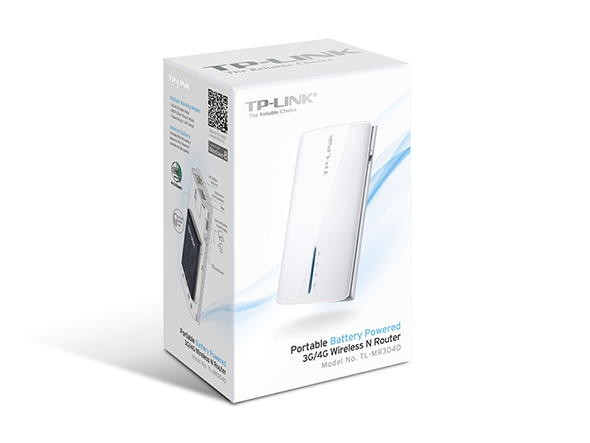

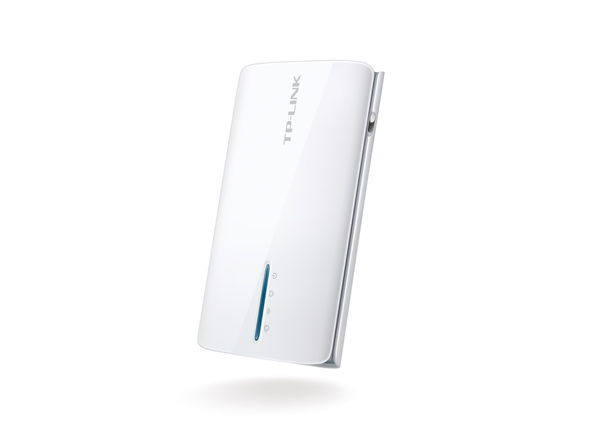

    Portable Battery Powered 3G/4G Wireless N Router

    • Compatible with LTE/ HSPA+/UMTS/EVDO 3G/4G USB modems
    • Features a 2000mAh battery for maximum usage time
    •  Three operation modes available for different situations: 3G/4G Router, Travel Router (AP), WISP Client Router
    • 150Mbps wireless speeds for rapid sharing and increased signal range

    4G LTE Modems Compatibility apply to TL-MR3040 Version 1.0 and Version 2.0 both. However, for TL-MR3040_V1, only firmware TL-MR3040_V1_120822 supports 4G LTE Modems.

    For More Info Please Visit www.tp-link.com

    HARDWARE FEATURES
    Interface 1 10/100Mbps WAN/LAN port, USB 2.0 port for 3G/4G modem, a micro USB port for power supply
    Button Power On/Off Button, Reset Button, Operation Mode Switch
    Power Supply Internal 2000mAh rechargeable battery, 5VDC/1.0A external power adapter
    Dimensions (W X D X H) 3.9 x 2.4 x 0.6 in. (100 x 62 x 16 mm)
    LED Power, WLAN, Ethernet, Internet
    Weight 3.3 ounce (94g)
    Antenna Type Internal Antenna
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    Frequency 2.4-2.4835GHz
    Signal Rate Up to 150Mbps
    Transmit Power <20dBm
    Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast
    SOFTWARE FEATURES
    Security Firewall, VPN, ALG, IP&MAC Binding, DoS Protection
    Operating Modes 3G/4G Router, Travel Router (AP), WISP Client Router
    WAN Type Dynamic IP, Static IP, PPPoE/Russia PPPoE, Bigpand Cable, L2TP/Russia L2TP, PPTP/Russia PPTP
    DHCP DHCP server, DHCP Client List, Address Reservation
    Port Forwarding Virtual Server, Port Triggering, DMZ, UPnP
    Access Control Parental Control, Bandwidth Control, Loal Management, Remote Management, Access Schedule, Advanced Routing
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents TL-MR3040
    Power Adapter
    Li-Ion Battery
    USB Cable
    Ethernet Cable
    Quick Installation Guide
    Resource CD
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
    Environment Operating temperature:15℃~40℃
    Storage Temperature: -20℃~50℃
    Operating Humidity: 0%~75% non-condensing
    Storage Humidity: 0%~75% non-condensing
