TD-W8980(UN)1.0-01
  • TD-W8980

    • All-in-One Device: ADSL2+ Modem, NAT Router, 4-Gigabit-Port Switch and Wireless N Access Point
    • Simultaneous 2.4GHz 300Mbps and 5GHz 300Mbps connections for 600Mbps of total available bandwidth
    • 2 USB ports for storage sharing, printer sharing, FTP Server and Media Server
    Category: .

    Product Description

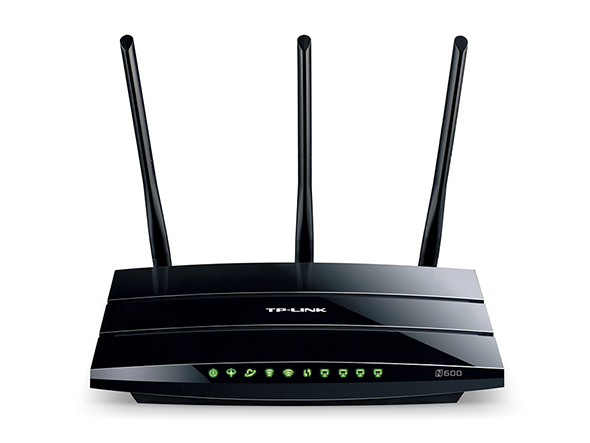

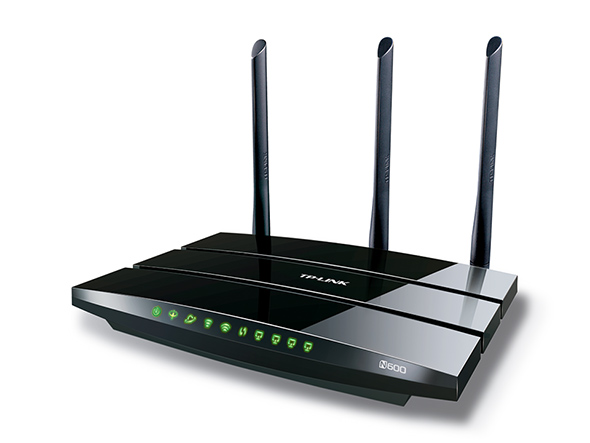

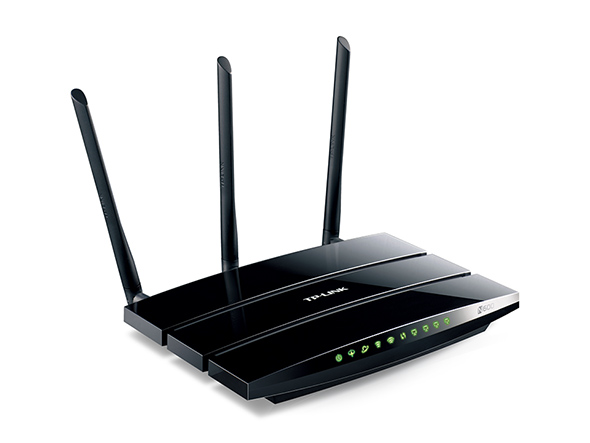

    N600 Wireless Dual Band Gigabit ADSL2+ Modem Router

    • All-in-One Device: ADSL2+ Modem, NAT Router, 4-Gigabit-Port Switch and Wireless N Access Point
    • Simultaneous 2.4GHz 300Mbps and 5GHz 300Mbps connections for 600Mbps of total available bandwidth
    • Versatile Connectivity: ADSL or Ethernet WAN for multiple Internet connection types
    • 2 USB ports for storage sharing, printer sharing, FTP Server and Media Server

    For More Info Please Visit www.tp-link.com



    HARDWARE FEATURES

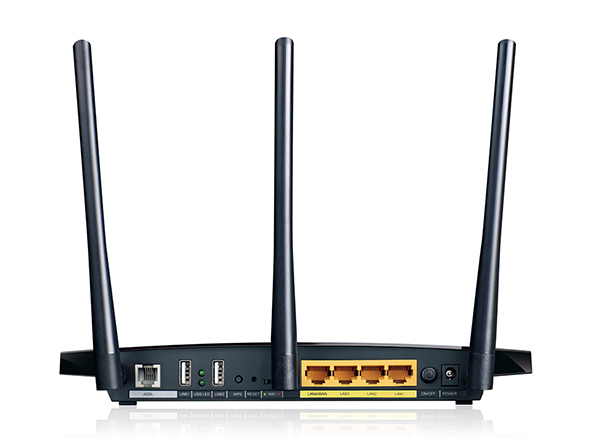

    Interface 4 10/100/1000Mbps RJ45 Ports
    1 RJ11 Port
    2 USB 2.0 Ports
    Button 1 Power On/Off Button
    1 WPS Button
    1 Wi-Fi On/Off Switch
    1 RESET Button
    Dimensions (W X D X H) 9.6*6.4*1.3 in.(243 x 160.6 x 32.5mm)
    External Power Supply 12VDC/1.5A
    IEEE Standards IEEE 802.3, 802.3u
    ADSL Standards Full-rate ANSI T1.413 Issue 2
    ITU-T G.992.1(G.DMT)
    ITU-T G.994.1 (G.hs)
    ITU-T G.995.1
    ADSL2 Standards ITU-T G.992.3 (G.dmt.bis)
    ADSL2+ Standards ITU-T G.992.5
    Antenna Type Three 5GHz 5dBi detachable antennas (RP-SMA)
    Two 2.4GHz 3.5dBi internal antennas
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    Frequency 2.4GHz and 5GHz
    Transmit Power <20dBm(EIRP)
    Wireless Security Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
    Wireless MAC Filtering
    SOFTWARE FEATURES
    Quality of Service WMM, Bandwidth Control (IP QoS)
    Security NAT Firewall,
    SPI Firewall,
    MAC / IP / URL Filtering
    IPv6 IPv6 and IPv4 dual stack
    Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
    Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
    Management Web Based Configuration(HTTP),
    Remote management,
    Telnet management,
    Command Line Interface,
    SSL for TR-069,
    SNMP V1/V2C,
    Web Based Firmware Upgrade,
    CWMP(TR-069),
    Diagnostic Tools
    Port Forwarding Virtual server, Port Triggering, UPnP, DMZ, Manage Control
    VPN Pass-Through PPTP, L2TP, IPSec Pass-through
    ATM/PPP Protocols ATM Forum UNI3.1/4.0
    PPP over ATM (RFC 2364)
    PPP over Ethernet (RFC2516)
    IPoA (RFC1577/2225)
    PVC – Up to 8 PVCs
    Advanced Features Parent Control
    Traffic Shaping(ATM QoS) UBR, CBR
    VBR-rt, VBR-nrt;
    Dynamic Host Configuration Protocol (DHCP), DHCP relay;
    Network Address Translation (NAT);
    PVC/Ethernet Port Grouping
    Static Routing, RIP v1/v2 (optional);
    DNS Relay, DDNS
    USB Sharing Storage Sharing
    FTP Server
    Media Server
    Print Server
    IGMP IGMP snooping V1/V2/V3
    IGMP Multicast
    IPSec VPN 10 IPSec VPN Tunnels
    LAN-to-LAN
    Main, Aggressive Negotiation Mode
    DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
    MD5, SHA1 Authentication Algorithm
    Manual, IKE Key Management Mode
    Dead Peer Detection (DPD)
    Perfect Forward Secrecy (PFS)
    OTHERS
    Certification CE, FCC, RoHS
    IPv6
    Package Contents TD-W8980
    External Splitter
    RJ-11 Telephone Line
    RJ-45 Ethernet Cable
    Quick Installation Guide
    Resource CD
    Power Adapter
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
    Environment Operating Temperature: 0°C~40°C (32°F~104°F)
    Storage Temperature: -40°C~70°C (-40°F~158°F)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
