TD-W8970-1.0-01
  • TD-W8970

    • All-in-One Device: ADSL2+ Modem, NAT Router, 4-Gigabit-Port Switch and Wireless N Access Point
    • 300Mbps Wireless speed and Gigabit Ethernet ports, ideal for multiple HD video streams
    • Versatile Connectivity: ADSL, Ethernet WAN or 3G/4G modem for multiple Internet connection types
    • One USB 2.0 port for storage sharing, printer sharing, FTP Server, Media Server and 3G/4G Modem
    Category: .

    Product Description

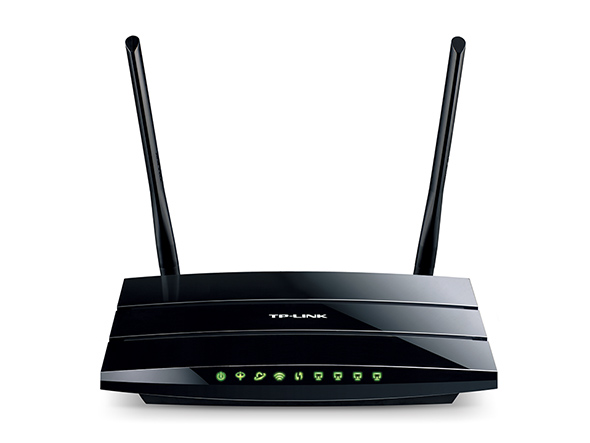

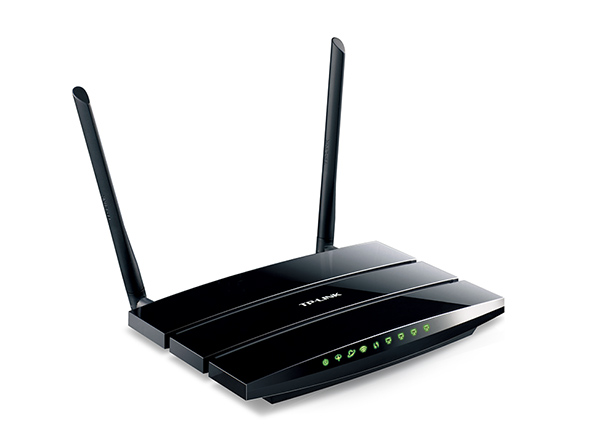

    300Mbps Wireless N Gigabit ADSL2+ Modem Router

    • All-in-One Device: ADSL2+ Modem, NAT Router, 4-Gigabit-Port Switch and Wireless N Access Point
    • 300Mbps Wireless speed and Gigabit Ethernet ports, ideal for multiple HD video streams
    • Versatile Connectivity: ADSL, Ethernet WAN or 3G/4G modem for multiple Internet connection types
    • One USB 2.0 port for storage sharing, printer sharing, FTP Server, Media Server and 3G/4G Modem

    For More Info Please Visit www.tp-link.com

    HARDWARE FEATURES

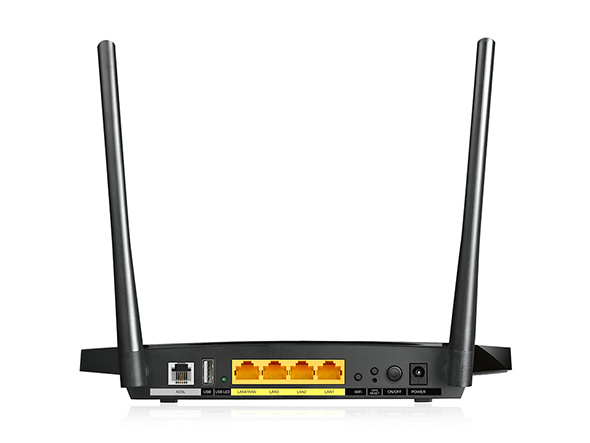

    Interface 4 10/100/1000Mbps RJ45 Ports
    1 RJ11 Port
    1 USB 2.0 Port
    Button 1 Power On/Off Button
    1 WPS Button
    1 Wi-Fi On/Off Switch
    1 RESET Button
    Dimensions (W X D X H) 8.9×5.5×1.3 in.(225x140x32.5mm)
    External Power Supply 12VDC/1.5A
    IEEE Standards IEEE 802.3, 802.3u, 802.3ab
    ADSL Standards Full-rate ANSI T1.413 Issue 2
    ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite)
    ITU-T G.994.1 (G.hs)
    ITU-T G.995.1
    ADSL2 Standards ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4(G.lite.bis)
    ADSL2+ Standards ITU-T G.992.5
    Antenna Type Omni directional, Detachable, Reverse SMA
    Antenna Gain 2 x 5dBi
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11b, 802.11g, 802.11n
    Frequency 2.400-2.4835GHz
    Transmit Power <20dBm(EIRP)
    Wireless Security Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
    Wireless MAC Filtering
    SOFTWARE FEATURES
    Quality of Service WMM, Bandwidth Control (IP QoS)
    Security NAT Firewall, SPI Firewall, MAC / IP / URL Filtering
    IPv6 IPv6 and IPv4 dual stack
    Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
    Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
    Management Web Based Configuration(HTTP)
    Remote management
    Telnet management
    Command Line Interface
    SSL for TR-069
    SNMP V1/V2C
    Web Based Firmware Upgrade
    CWMP(TR-069)
    Port Forwarding Virtual server, Port Triggering, UPnP, DMZ, Manage Control
    VPN Pass-Through PPTP, L2TP, IPSec Pass-through
    ATM/PPP Protocols ATM Forum UNI3.1/4.0
    PPP over ATM (RFC 2364)
    PPP over Ethernet (RFC2516)
    IPoA (RFC1577/2225)
    PVC – Up to 8 PVCs
    Advanced Features Guest Network, Parental Control, Wireless Schedule
    Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt
    Dynamic Host Configuration Protocol (DHCP), DHCP relay
    Network Address Translation (NAT)
    PVC/Ethernet Port Grouping
    Static Routing, RIP v1/v2 (optional)
    DNS Relay, DDNS
    USB Sharing Storage Sharing, FTP Server, Media Server, Print Server
    IGMP IGMP snooping V1/V2/V3
    IGMP Multicast
    IPSec VPN 10 IPSec VPN Tunnels
    LAN-to-LAN
    Main, Aggressive Negotiation Mode
    DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
    MD5, SHA1 Authentication Algorithm
    Manual, IKE Key Management Mode
    Dead Peer Detection (DPD)
    Perfect Forward Secrecy (PFS)
    OTHERS
    Certification CE, FCC, RoHS
    IPv6
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 8.1, Windows 7, MAC® OS,
    NetWare®, UNIX® or Linux.
    Environment Operating Temperature: 0°C~40°C (32°F~104°F)
    Storage Temperature: -40°C~70°C (-40°F~158°F)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
